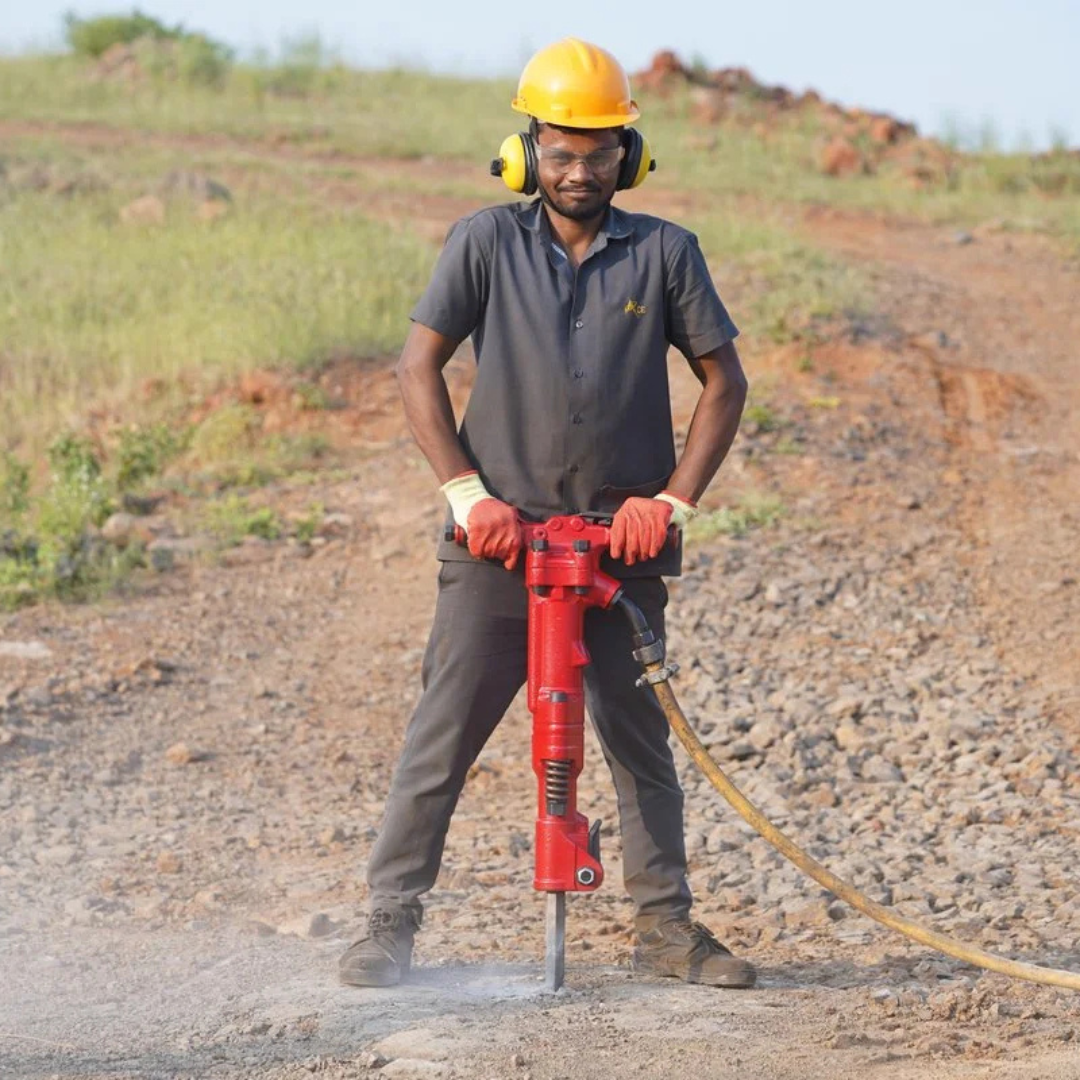

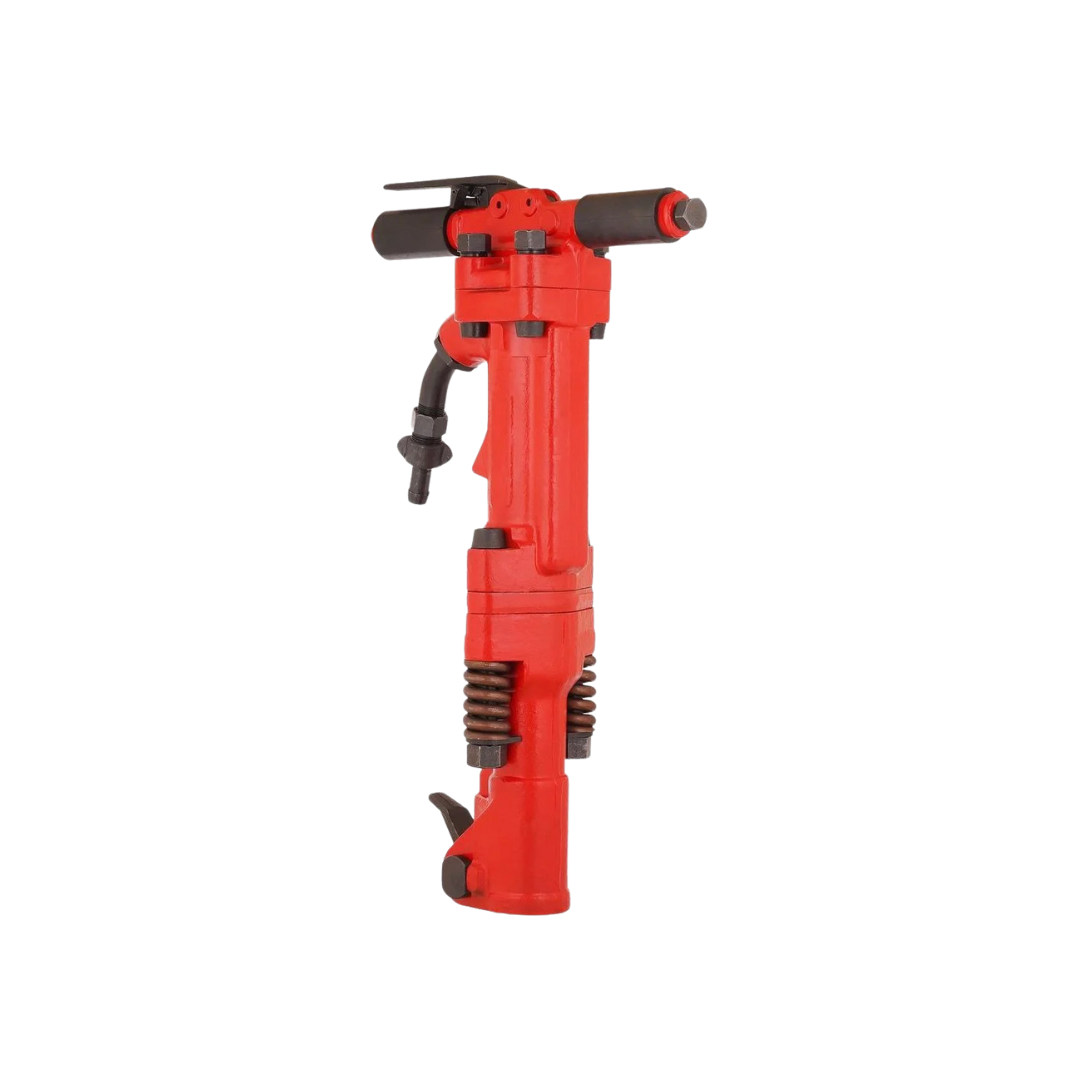

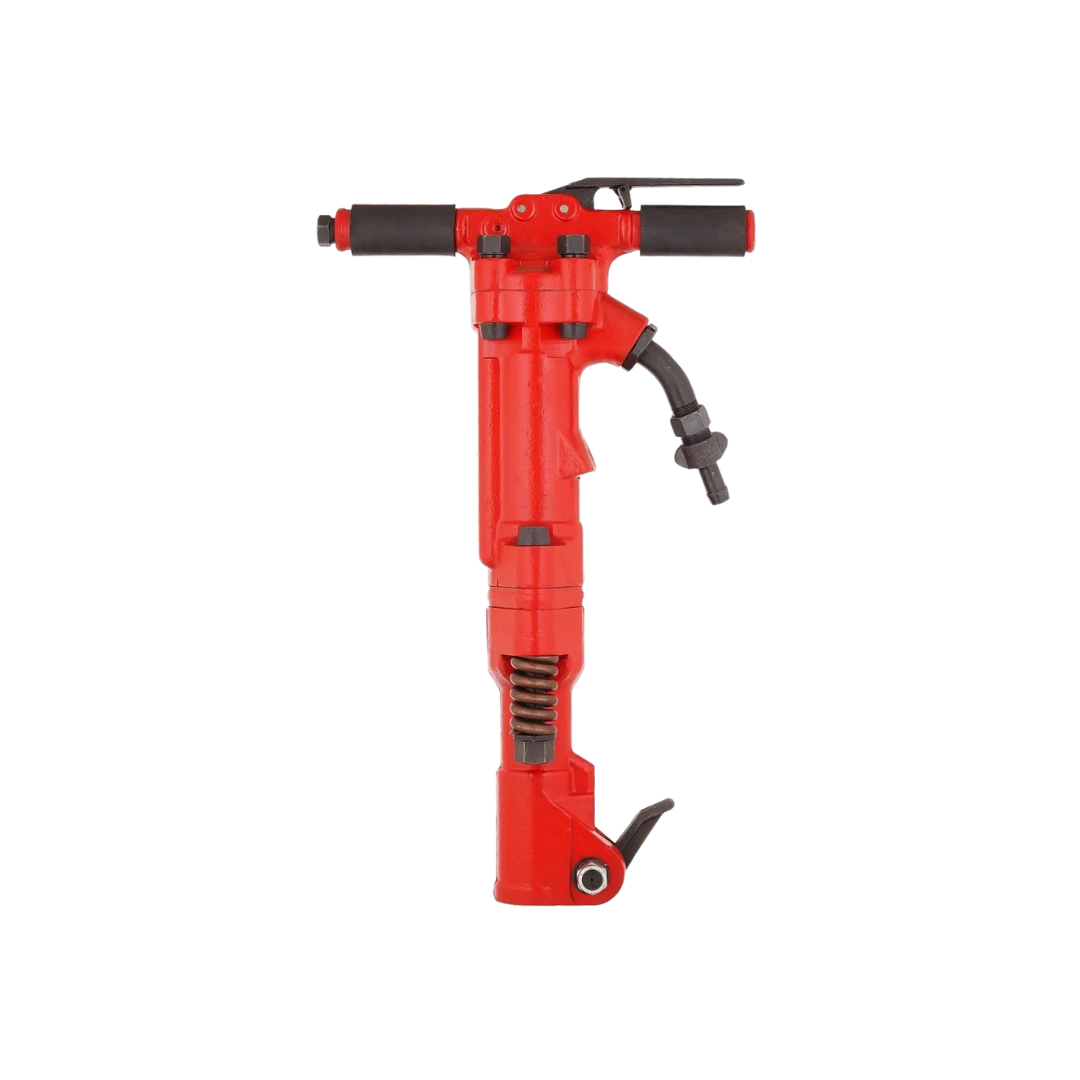

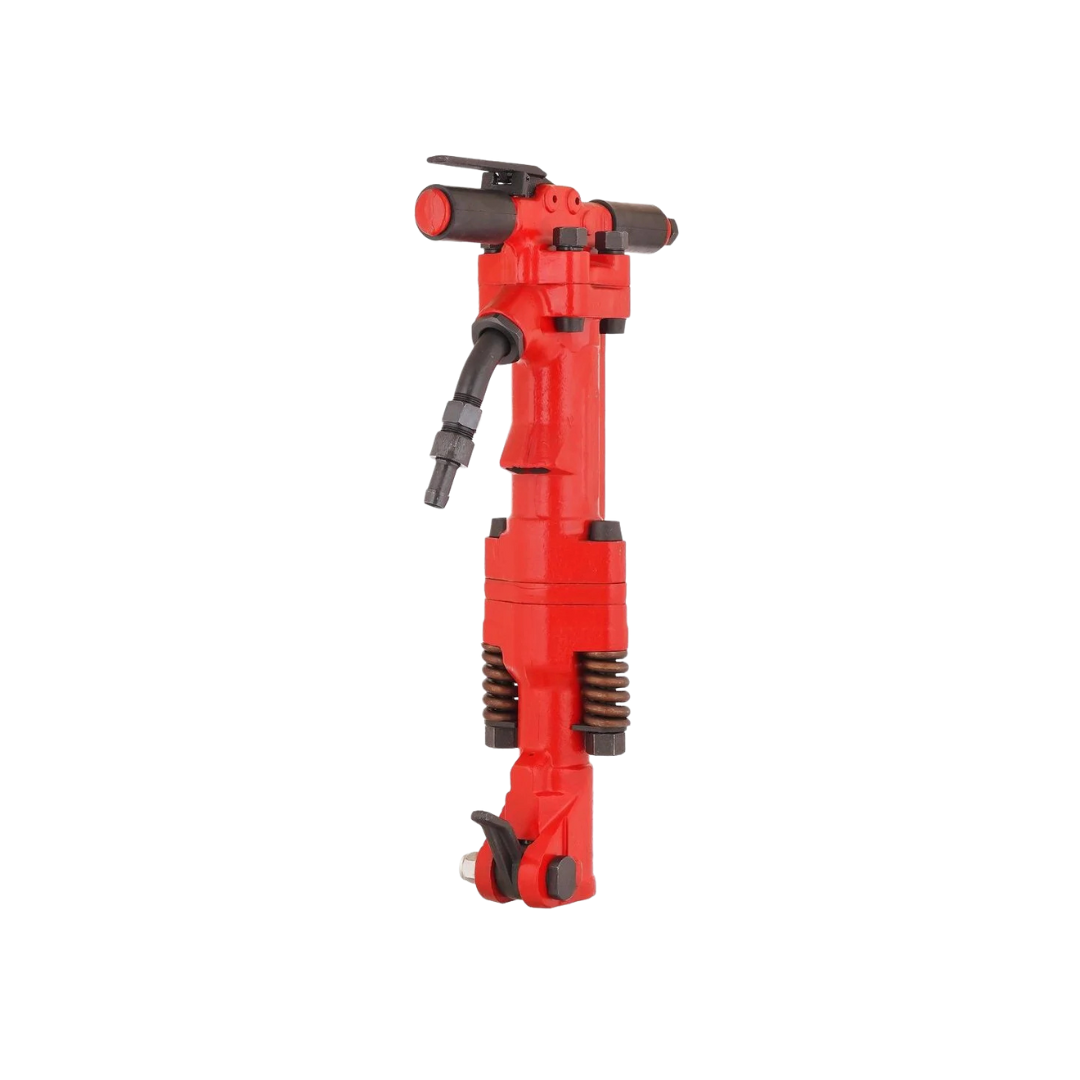

Paving Breaker ACE TPB 60 | 31 Kg Pneumatic Concrete Breaker

The ACE TPB 60 Paving Breaker is a high-performance 68 lb (31 kg) pneumatic concrete breaker equivalent to TOKU TPB 60, designed for road construction, foundation work, and heavy-duty demolition applications.






Applications

  • Road construction and building foundation work

  • Non-consolidated rock breaking

  • General demolition tasks

  • Tough construction and plant maintenance jobs



Key Features

  • 68 lb high-performance pneumatic breaker

  • Equivalent to TOKU TPB 60 paving breaker

  • Alloy steel forged parts for maximum durability

  • Forged latch retainer for quick chisel changes

  • Strong four-bolt handle construction

  • High blow rate for efficient material breaking

Description

The Paving Breaker ACE TPB 60 is a rugged and high-productivity pneumatic demolition tool engineered for demanding construction and industrial environments. Equivalent to the TOKU TPB 60 paving breaker, it delivers reliable performance, durability, and efficiency for contractors working on road construction, building foundations, and heavy demolition jobs.

Built with alloy steel forged components, the ACE TPB 60 ensures maximum strength and long service life under continuous high-impact use. The forged latch retainer allows quick and secure chisel changes, minimizing downtime and improving job site productivity. Its four-bolt handle design provides added structural strength and stability during operation.

Operating at 6 bar (87 psi) with a high impact rate of 1400 blows per minute, this pneumatic concrete breaker offers excellent breaking efficiency while maintaining operator control. Commonly known as a pneumatic air hammer, four-bolt breaker, or handheld pneumatic breaker, the TPB 60 is a versatile and trusted tool across global construction markets.

Manufactured by Ace Pneumatics Pvt. Ltd., India, the ACE TPB 60 combines proven engineering with robust materials to meet the demands of modern construction and plant maintenance operations.


Specification Metric Imperial
Weight (with silencer) 31 kg 68 lb
Weight (without silencer) 30 kg 66 lb
Length 645 mm 25.3”
Blows per Minute 1400 bpm 1400 bpm
Piston Diameter 57.15 mm 2.25”
Piston Stroke 100 mm 3.93”
Air Inlet 19 mm ¾”
Operating Pressure 6 bar 87 psi
Air Consumption 1.7 m³/min 58 cfm
Shank Size 28 × 152 mm 1⅛″ × 6″
Optional Shank Size 32 × 152 mm 1¼″ × 6″
